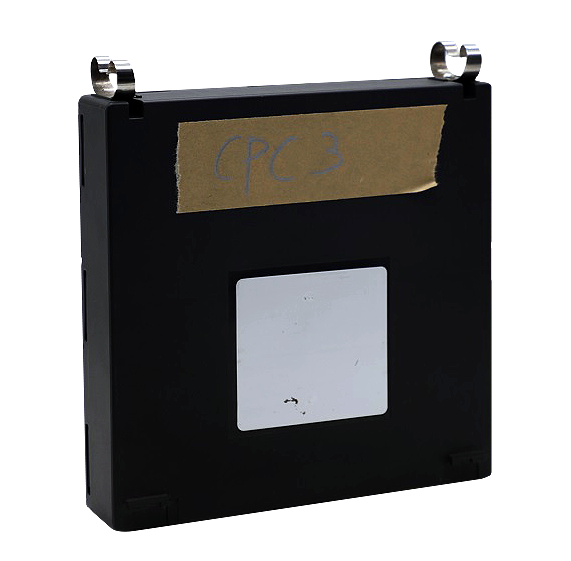

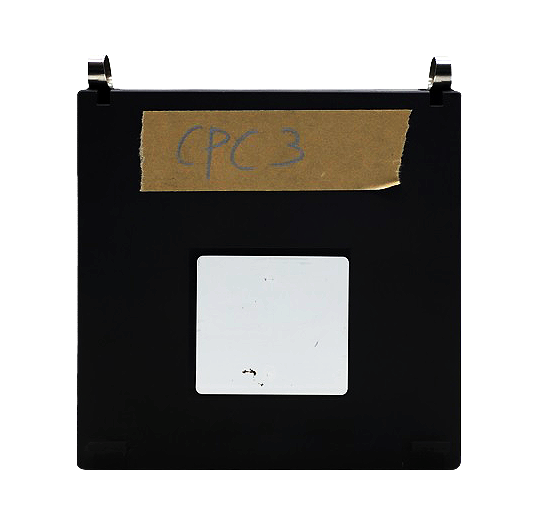

CPC3

Simply Just, Simply SUNJIN


What is CPC?

CPC (Central Powertrain Controller) is a central control unit that comprehensively manages and coordinates the entire powertrain.
It is positioned above individual controllers such as MCM and ACM and plays a key role in optimizing the vehicle's driving performance and environmental regulation compliance.
CPC (Central Powertrain Controller) is a module that comprehensively controls and manages powertrain components such as the engine, transmission, and exhaust gas aftertreatment system.
Mainly used in Mercedes-Benz heavy-duty trucks (e.g. Actros, Arocs) and some buses with Euro 6 or higher ratings.

Key features of CPC

Function Explanation
Powertrain Strategy Control Coordination between engine (MCM), transmission (TCM), and aftertreatment (ACM) modules
Driving and driving mode management Eco/Power/Manual mode switching control
Cruise control/downhill speed management Braking force and engine brake coordination control
SCR regeneration control approval Determination and approval of whether the post-processing system can be regenerated
Limp Mode Management Determining whether to limit output and triggering when DTC occurs
Vehicle speed limit, departure condition control Compliance with regulations and safety limits
Control security features and lock conditions Unauthorized driving prevention, maintenance lock, SFD certification, etc.

Key modules that are linked

Linkage module Explanation
MCM (Motor Control Module) Engine control
ACM (Aftertreatment Control Module) Exhaust gas aftertreatment control
TCM (Transmission Control Module) Automatic transmission control
ICU (Instrument Cluster Unit) Provide warnings and information to drivers
ADM/FR/BSM, etc. Other auxiliary controls in the vehicle

Communication method

  • CAN communication based
  • Some vehicles may include FlexRay or LIN auxiliary communications
  • CPC also acts as a gateway between multiple CAN buses.

CPC hardware characteristics

  • High heat resistance, high vibration design
  • Waterproof housing and special connectors
  • Mounted on the lower part of the passenger seat
  • Storing vehicle information and DTCs in EEPROM or Flash

Symptoms of CPC failure

Symptoms Explanation
Unable to start or enters limp mode Communication breakdown between CPC and MCM
SCR not playing Missing ACM playback approval from CPC
Vehicle speed limit Safety control state transition
Cruise function disabled Failure to judge driving conditions
Driving mode cannot be changed Eco/Power mode communication issue
A large number of DTCs (CAN related) CPC Gateway function error or power problem
Accelerator pedal malfunction Hardware pedal-related circuit abnormality
Gear shifting abnormality Problems due to signal errors
RPM irregularity The problem arises when the signals sent from each sensor do not match each other between units.
