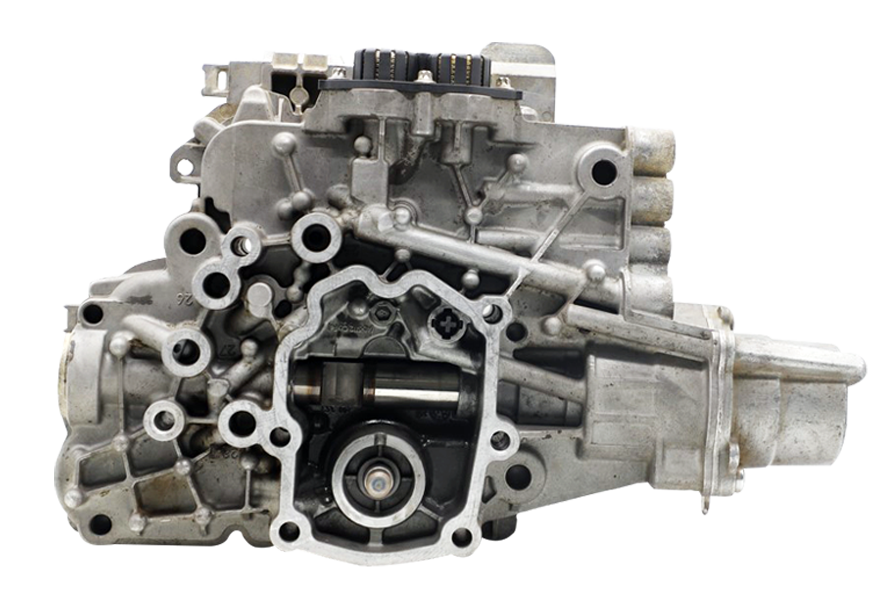

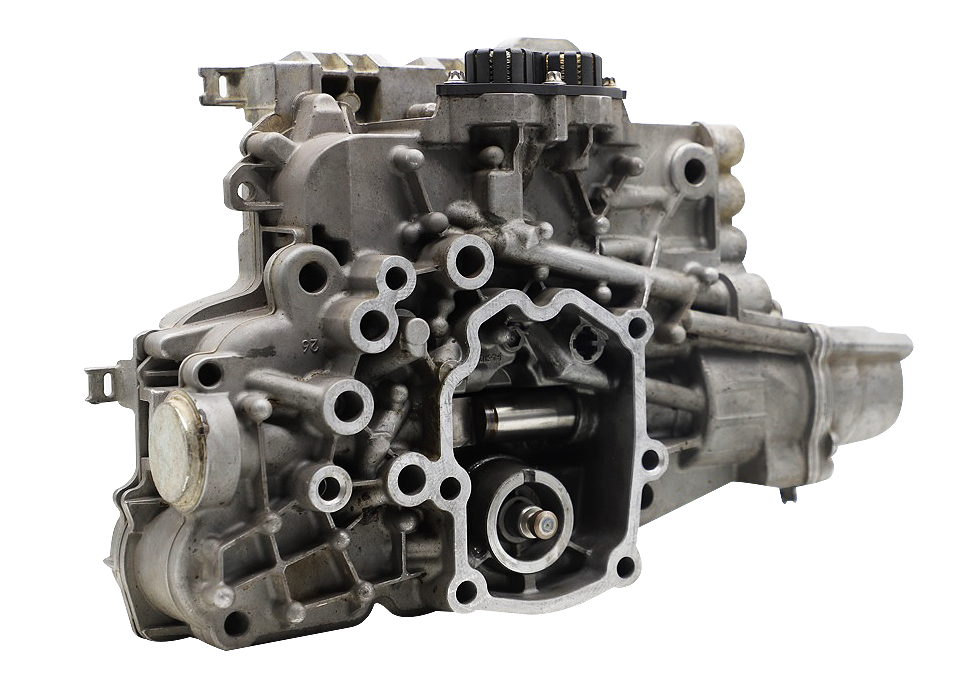

What is a TCM Actuator?

The TCM actuator (Transmission Actuator) receives electronic control signals and converts them into mechanical movement to shift gears or engage/disengage the clutch.
In Mercedes-Benz commercial vehicles, it generally consists of the following components.

Components of Mercedes TCM Actuator

Actuator Type Function Mounting Position
Gear Shift Actuator Moves the gear fork to perform gear shifting Inside or outside the transmission
Clutch Actuator Electronically operates the clutch (no manual pedal) Outside the clutch bell housing
Range/Slide Actuator Switches between high/low ranges (especially in 16-speed transmissions) Side of the transmission
Solenoid Valve (Hydraulic System) Controls gear actuator via hydraulic pressure Built into valve block
Electric Motor Actuator (Electric System) Controls gear/clutch directly through motor rotation Used in electric transmission structures
Gear Position Sensor (GPS) Verifies if the gear is correctly positioned Inside actuator or near TCU

Gear Shift Actuator

  • Function
  • Performs gear selection (Select) + gear shifting (Shift)
  • Moves slider/fork to engage a specific gear
  • Technology
  • Electric (motor), electro-hydraulic (solenoid), pneumatic (older models)
  • Example Operation
  • TCM sends a "3rd gear" shift command → actuator moves the fork to engage 3rd gear

Clutch Actuator

  • Function
  • Automatically engages/disengages power without manual clutch
  • Control Method
  • Mostly electro-hydraulic Electronically replaces clutch master-slave

  • Some models use an electric clutch actuator
  • Control Parameters
  • Clutch opening degree (pedal-like function), slip control, forced release in case of failure

Common Symptoms of TCM Actuator Failure

Symptom Possible Cause
Gear does not shift Shift actuator stuck, sensor error
Gear 'F' (Failure) displayed Actuator position error, no response
Severe clutch slip during start Faulty clutch actuator or calibration error
Gear stuck in neutral Slide actuator not functioning
Harsh shift shock Clutch malfunction or timing mismatch
TCM warning light on Internal actuator fault (including CAN error)
