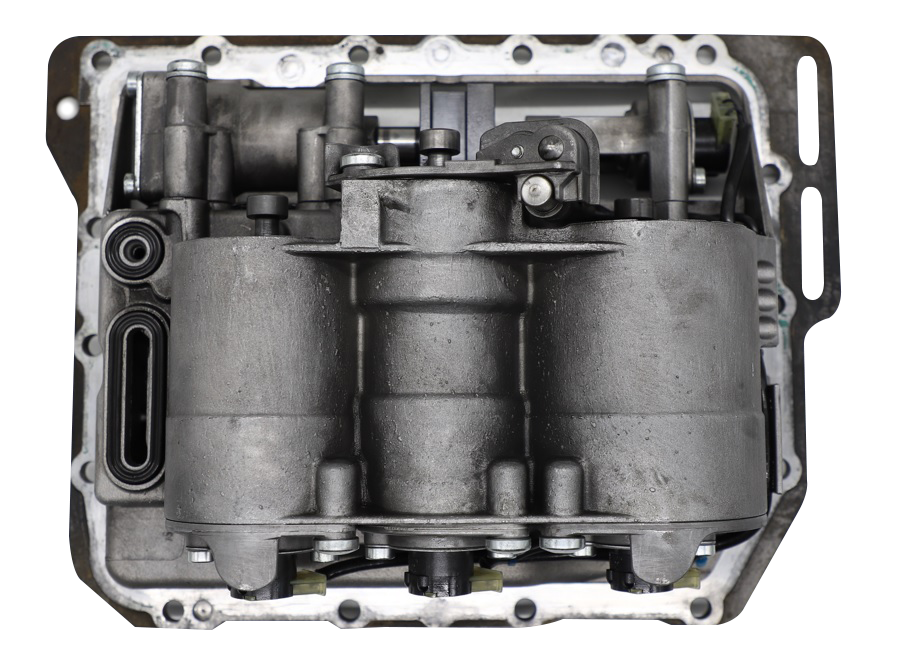

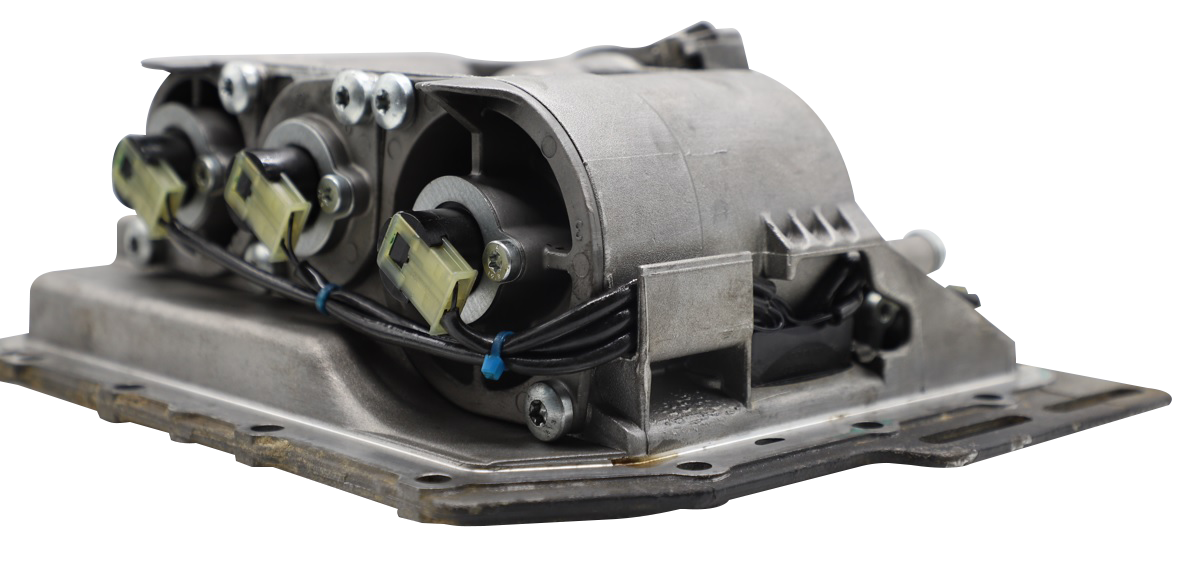

ZF transmission Actuator

Simply Just, Simply SUNJIN


Role of the Transmission Actuator

The transmission actuator (Actuator Unit) is one of the core components of the ZF-AS Tronic system.

Main Functions

Function Description
Gear Control Physically performs gear changes (e.g., 3rd → 4th)
Clutch Control Controls clutch engagement and disengagement
Sensor Data Input/Output Provides gear position, speed, clutch status, etc.
CAN Communication Real-time data exchange with the TCU (Transmission Control Unit) via J1939 protocol

Failure Symptoms and Service Information

Failure Symptom Possible Cause
Gear does not shift Actuator sensor malfunction, insufficient air pressure
Stuck in neutral Shift command not executed (TCU or actuator fault)
"GEARBOX ERROR" Sensor communication error or internal actuator defect
Engine will not start Transmission neutral position not detected
